中华妇幼临床医学杂志(电子版) ›› 2026, Vol. 22 ›› Issue (02) : 148 -154. doi: 10.3877/cma.j.issn.1673-5250.2026.02.007

论著

E-cervix宫颈弹性成像联合超声参数在晚孕期孕妇分娩方式预测中的价值
高宁宁1,2, 韩蓁1,(), 王音2, 陈小莉2, 岳瑾琢2
  1. 1西安交通大学第一附属医院妇产科,西安 710061
    2西安大兴医院超声医学科,西安 710082
  • 收稿日期:2025-11-08 修回日期:2026-01-10 出版日期:2026-04-01
  • 通信作者: 韩蓁

Predictive value of E-cervix cervical elastography combined with ultrasonographic parameters for mode of delivery of pregnant women in the third trimester

Ningning Gao1,2, Zhen Han1,(), Yin Wang2, Xiaoli Chen2, Jinzhuo Yue2

  1. 1Department of Obstetrics and Gynecology, the First Affiliated Hospital of Xi′an Jiaotong University, Xi′an 710061, Shaanxi Province, China
    2Department of Ultrasound, Xi′an Daxing Hospital, Xi′an 710082, Shaanxi Province, China
  • Received:2025-11-08 Revised:2026-01-10 Published:2026-04-01
  • Corresponding author: Zhen Han
  • Supported by:
    Xi′an Municipal Health Research Fund Project(2024yb50)
引用本文:

高宁宁, 韩蓁, 王音, 陈小莉, 岳瑾琢. E-cervix宫颈弹性成像联合超声参数在晚孕期孕妇分娩方式预测中的价值[J/OL]. 中华妇幼临床医学杂志(电子版), 2026, 22(02): 148-154.

Ningning Gao, Zhen Han, Yin Wang, Xiaoli Chen, Jinzhuo Yue. Predictive value of E-cervix cervical elastography combined with ultrasonographic parameters for mode of delivery of pregnant women in the third trimester[J/OL]. Chinese Journal of Obstetrics & Gynecology and Pediatrics(Electronic Edition), 2026, 22(02): 148-154.

目的

探讨经阴道彩色多普勒超声联合E-cervix宫颈弹性成像参数在预测晚孕期孕妇分娩方式中的应用价值。

方法

选取2022年1月至2024年12月于西安大兴医院进行晚孕期经阴道超声检查孕妇300例为研究对象。采用回顾性分析方法,根据最终分娩方式将其分为自然分娩组(n=201)和剖宫产术分娩组(n=99)。对2组晚孕期孕妇宫颈长度(CL)、子宫颈角(UCA)、弹性对比指数(ECI)、硬度比、宫颈内口应变值(IOS)、宫颈外口应变值(EOS)及IOS/EOS等进行统计学分析。采用多因素非条件logistic回归分析晚孕期孕妇分娩方式的影响因素,并绘制受试者工作特征(ROC)曲线,根据曲线下面积(AUC)评价各参数及其联合对晚孕期孕妇分娩方式的预测效能。本研究遵循的程序通过西安大兴医院医学伦理委员会规定,并通过该伦理委员会审批(审批文号:KY2024-002)。

结果

①自然分娩组孕妇CL及硬度比低于剖宫产术分娩组,而UCA、ECI、IOS及EOS均大于剖宫产术分娩组,并且差异均有统计学意义(P<0.05)。②多因素非条件logistic回归分析显示,CL(OR=4.408,95%CI:2.486~7.817,P<0.001)和硬度比(OR=1.024,95%CI:1.005~1.043,P=0.012)为晚孕期孕妇剖宫产术分娩的独立危险因素,而UCA(OR=0.934,95%CI:0.911~0.957,P<0.001)为独立保护因素。③ROC曲线分析结果显示,UCA、CL、硬度比、IOS、EOS及ECI预测晚孕期孕妇自然分娩的AUC分别为0.750、0.706、0.652、0.617、0.602和0.596;多参数联合(UCA、CL、硬度比、IOS、EOS及ECI)预测的AUC为0.841(95%CI:0.792~0.890),预测晚孕期孕妇自然分娩的敏感度为86.1%,特异度为73.7%。

结论

经阴道彩色多普勒超声联合E-cervix宫颈弹性成像多参数指标,可从晚孕期孕妇子宫解剖结构及生物力学特征多维度评估宫颈成熟度。多参数联合较单一指标对晚孕期孕妇分娩方式具有更高的预测效能,可为晚孕期分娩方式的个体化评估提供客观依据。

Objective

To investigate the value of transvaginal color Doppler ultrasound combined with E-cervix elastography parameters in predicting the mode of delivery of pregnant women in the third trimester.

Methods

A total of 300 pregnant women who underwent late-pregnancy ultrasound examination at Xi′an Daxing Hospital from January 2022 to December 2024 were retrospectively enrolled. According to the mode of delivery, they were divided into a vaginal delivery group (n=201) and a cesarean delivery group (n=99). Cervical parameters including cervical length (CL), uterocervical angle (UCA), elasticity contrast index (ECI), hardness ratio, internal os strain (IOS), external os strain (EOS), and IOS/EOS were analyzed. Multivariate unconditional logistic regression analysis was performed to identify factors associated with the mode of delivery. Receiver operating characteristic (ROC) curves were constructed to evaluate the predictive performance of individual parameters and the combined model. This study was approved by the Medical Ethics Committee of Xi′an Daxing Hospital (Approval No. KY2024-002).

Results

① Compared with the cesarean delivery group, the vaginal delivery group showed significantly lower CL and hardness ratio, and significantly higher UCA, ECI, IOS, and EOS (all P<0.05). ② Multivariate logistic regression analysis demonstrated that CL (OR=4.408, 95%CI: 2.486-7.817, P<0.001) and hardness ratio (OR=1.024, 95%CI: 1.005-1.043, P=0.012) were independent risk factors for cesarean delivery of pregnant women in the third trimester, whereas UCA (OR=0.934, 95%CI: 0.911-0.957, P<0.001) was an independent protective factor. ③ROC curve analysis showed that the area under the curve (AUC) for predicting vaginal delivery was 0.750 for UCA, 0.706 for CL, 0.652 for hardness ratio, 0.617 for IOS, 0.602 for EOS, and 0.596 for ECI. The combined model (UCA, CL, hardness ratio, IOS, EOS, and ECI) achieved an AUC of 0.841 (95%CI: 0.792-0.890), with a sensitivity of 86.1% and a specificity of 73.7%.

Conclusions

Transvaginal color Doppler ultrasound combined with E-cervix elastography can comprehensively evaluate cervical maturity from both anatomical and biomechanical perspectives. A multiparametric combined model demonstrates superior predictive performance compared with single parameters and may provide an objective basis for individualized assessment of delivery mode of pregnant women in the third trimester.

表1 2组晚孕期孕妇的一般临床资料比较

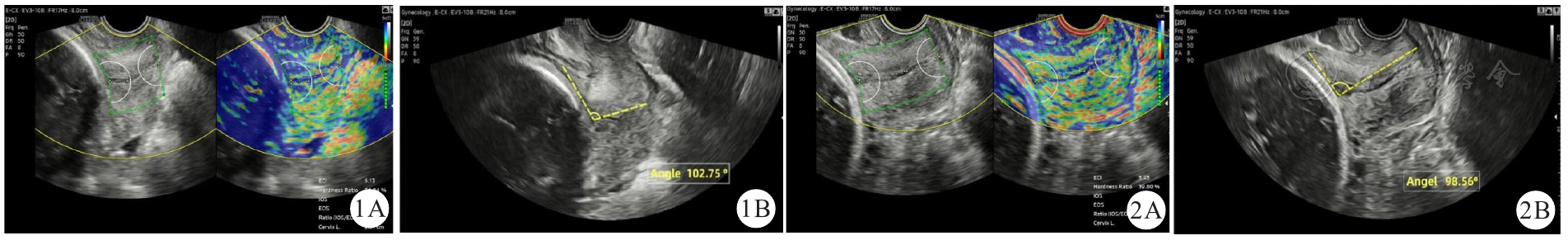

图1 本研究1例自然分娩孕妇(27岁,G1P0,孕龄为38+6孕周)的经阴道彩色多普勒超声声像图[图1A:宫颈弹性成像测量图;图1B:宫颈角测量图(UCA为102.75°,CL为2.51 cm,ECI为5.13,硬度比为34.04%,IOS为0.57,EOS为0.38,IOS/EOS为1.50)]  图2 本研究1例剖宫产术分娩孕妇(35岁,G2P1,孕龄为37+5孕周)的经阴道彩色多普勒超声声像图[图2A:宫颈弹性成像测量图;图2B:宫颈角测量图(UCA为98.56°,CL为4.00 cm,ECI为5.45,硬度比为39.80%,IOS为0.35,EOS为0.47,IOS/EOS为0.74)]注:UCA为宫颈角,CL为宫颈长度,ECI为弹性对比指数,IOS为宫颈内口应变值,EOS为宫颈外口应变值,IOS/EOS为宫颈内外口应变比值
表2 2组晚孕期孕妇经阴道彩色多普勒超声测量的宫颈参数比较[M(Q1Q3)]
表3 影响晚孕期孕妇分娩方式因素的多因素非条件logistic回归分析结果

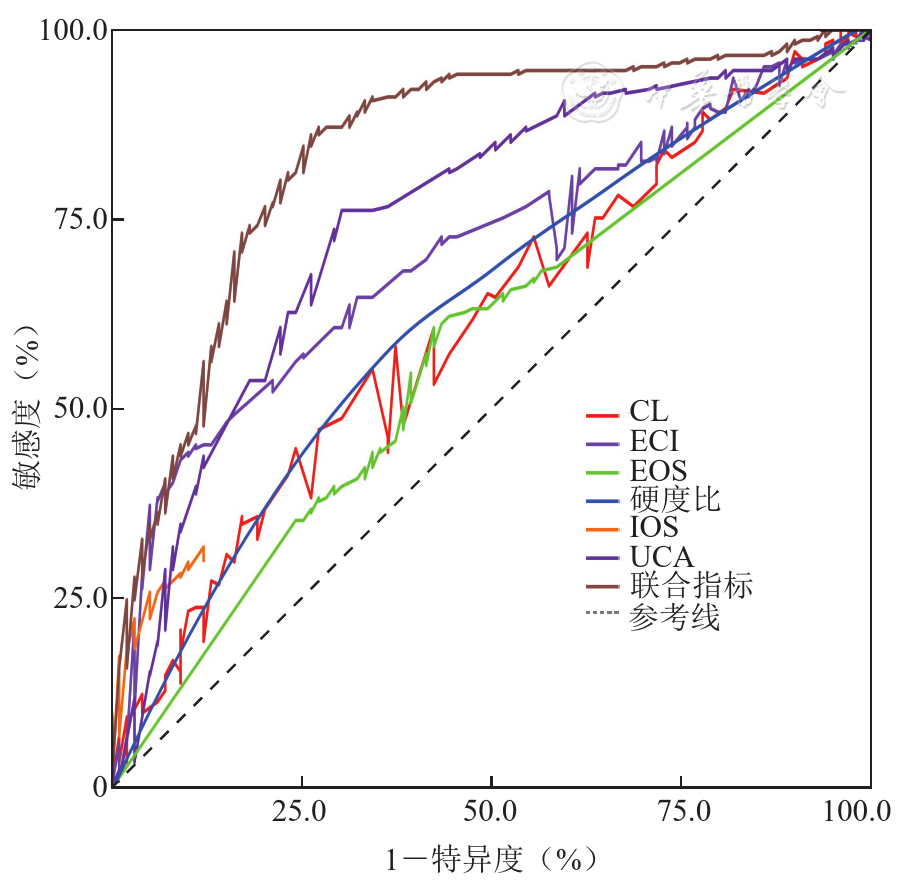

图3 晚孕期孕妇经阴道彩色多普勒超声测量宫颈各参数及其联合预测晚孕期孕妇自然分娩的ROC曲线注:联合指标为UCA、CL、硬度比、IOS、EOS及ECI联合。ROC曲线为受试者工作特征曲线,UCA为子宫颈角,CL为宫颈长度,IOS为宫颈内口应变值,EOS为宫颈外口应变值,ECI为弹性对比指数
表4 晚孕期孕妇经阴道彩色多普勒超声测量宫颈各参数及其联合预测晚孕期孕妇自然分娩的ROC曲线分析结果
[1]
Manchu M, Redla V. Prediction of mode of delivery by an ultrasound score similar to Bishop score and performance of independent predictors [J]. J Ultrasound, 2023, 26(3): 619-626. DOI: 10.1007/s40477-022-00682-3.
[2]
Chan Y, Lau KW, Hui W, et al. Sonographic measurement of cervical length and head perineum distance before labor to predict time of delivery [J]. J Matern Fetal Neonatal Med, 2022, 35(25): 4905-4909. DOI: 10.1080/14767058.2021.1873264.
[3]
缪雨田,龙煜,骆迎春,等. E-cervix宫颈弹性成像技术在先兆早产孕妇中的应用:120例分析[J].中华围产医学杂志2024, 27(8): 656-661. DOI: 10.3760/cma.j.cn113903-20240123-00041.
[4]
Wang B, Zhang Y, Chen S, et al. Diagnostic accuracy of cervical elastography in predicting preterm delivery: a systematic review and Meta-analysis [J]. Medicine (Baltimore), 2019, 98(29): e16449. DOI: 10.1097/MD.0000000000016449.
[5]
Kreienbühl J, Rüegg L, Balsyte D, et al. Duration of labor in consecutive deliveries: a retrospective data analysis [J]. Arch Gynecol Obstet, 2024, 310(1): 469-476. DOI: 10.1007/s00404-024-07554-7.
[6]
Khosravi H, Mehrbakhsh Z, Moghasemi S, et al. Preferred mode of delivery association with the body image and genital image in pregnant women - a cross-sectional study [J]. BMC Pregnancy Childbirth, 2023, 23(1): 490. DOI: 10.1186/s12884-023-05589-3.
[7]
van Dijk MR, Papatsonis C, Ganzevoort W, et al. Contraindications in national guidelines for vaginal breech delivery at term: comparison, consensus, and controversy [J]. Acta Obstet Gynecol Scand, 2024, 103(12): 2373-2380. DOI: 10.1111/aogs.14947.
[8]
Lin D, Hu B, Xiu Y, et al. Risk factors for premature rupture of membranes in pregnant women: a systematic review and Meta-analysis [J]. BMJ Open, 2024, 14(3): e077727. DOI: 10.1136/bmjopen-2023-077727.
[9]
中华医学会妇产科学分会产科学组. 晚孕期妊娠管理指南(2021版)[J]. 中华妇产科杂志2021, 56(9):601-612. DOI: 10.3760/cma.j.cn112141-20210615-00372.
[10]
Güner G, Barut A, Okcu NT. Transperineal sonographic assessment of the angle of progression before the onset of labour: how well does it predict the mode of delivery in late-term pregnancy [J]. J Perinat Med, 2024, 52(9): 955-959. DOI: 10.1515/jpm-2024-0214.
[11]
刘莹,娄可新,李欣,等. 宫颈弹性成像技术在自发性早产孕妇孕期检查中的应用[J].影像研究与医学应用2024, 8(3):17-19.
[12]
Vänni P, Tejesvi MV, Ainonen S, et al. Author correction: delivery mode and perinatal antibiotics influence the predicted metabolic pathways of the gut microbiome [J]. Sci Rep, 2023, 13(1): 20598. DOI: 10.1038/s41598-023-47520-y. Erratum for: Sci Rep, 2021,11(1):17483. DOI: 10.1038/s41598-021-97007-x.
[13]
Troìa L, Libretti A, Savasta F, et al The predictive role of uterocervical angle in labor outcomes: a narrative review [J]. Minerva Obstet Gynecol, 2025, 77(2): 119-127. DOI: 10.23736/S2724-606X.24.05572-6.
[14]
罗颖欣,陈洁莹,许晶莹,等,多模态超声及人工智能用于足月妊娠引产效果的预测价值 [J]. 新医学2025, 56 (7): 629-637. DOI:10.3969/j.issn.0253-9802.2025.07.012.
[15]
王媛,戴晨燕,杨岚,等,中孕期腹部超声测量宫颈长度与自发性早产的相关性 [J]. 中华围产医学杂志2023, 26(12): 982-988. DOI:10.3760/cma.j.cn113903-20230829-00165.
[16]
董丽丽,李胜利,陈秀兰,等. E-cervix弹性成像联合宫颈长度评估足月妊娠宫颈成熟度及预测自然分娩的价值 [J/OL]. 中华医学超声杂志(电子版), 2022, 19 (8): 721-726. DOI:10.3877/cma.j.issn.1672-6448.2022.08.005.
[17]
Al-Maamari R, Al-Hinai S, Al-Kharusi S, et al. The predictive value of transvaginal cervical length and cervical angle ultrasonography in term delivery outcomes: a cohort study [J]. J Obstet Gynaecol Res, 2025, 51(8): 1245-1252. DOI:10.1111/jog.15876.
[18]
Gupta S, Singh A, Kumar A, et al. Transvaginal sonographic assessment of cervical length and posterior cervical angle in predicting the success of labor induction [J]. Indian J Obstet Gynecol Res, 2025, 12(4): 456-462. DOI:10.18203/2349-6800.ijogr.v12i04.25339.
[19]
Kuru O, Ozdemir S, Kaya M, et al. Cervical shear wave elastography and cervical length as independent predictors of cesarean section in nulliparous women[J]. J Ultrasound Med, 2023, 42(7): 1459-1466. DOI:10.1002/jum.26458.
[20]
卢文岳,肖慧彬,黄素梅,等. 经阴道超声测量子宫颈角联合宫颈长度预测胎儿早产的可行性研究[J].中国医药科学202313(9):118-121. DOI: 10.3969/j.issn.2095-0616.2023.09.027.
