Chinese Journal of Obstetrics & Gynecology and Pediatrics(Electronic Edition) ›› 2025, Vol. 21 ›› Issue (03): 357 -365. doi: 10.3877/cma.j.issn.1673-5250.2025.03.015

Special Issue:

Original Article

Congenital long QT syndrome in a child: a family study and clinical analysis

Xiaoyan Wang, Lingxia Fan, Zhu Chen, Bo Yu, Yanfeng Yang()

  1. Department of Pediatric Cardiology, Chengdu Women′s and Chlidren′s Central Hospital, School of Medicine, University of Electronic Science and Technology of China, Chengdu 611731, Sichuan Province, China
  • Received:2024-08-06 Revised:2025-04-03 Published:2025-06-01
  • Corresponding author: Yanfeng Yang
  • Supported by:
    Chengdu Medical Research Project(2021162)
Objective

To explore the clinical characteristics of congenital long QT syndrome (LQTS) in children.

Methods

A 10-year-old male child (proband) diagnosed with type 2 LQTS (LQT2) at Chengdu Women′s and Children′s Central Hospital in July 2021 was enrolled. Clinical data from the proband and his 8 family members (mother, father, younger brother, maternal grandfather, maternal grandmother, paternal grandfather, paternal grandmother, maternal uncle) were collected. A pedigree map for LQTS genetic investigation of families of proband was constructed. Whole exome sequencing (WES) followed by Sanger sequencing validation were performed on the proband and parents to identify pathogenic variants. Sanger sequencing of the identified variant was conducted in selected family members. Based on the clinical data and genetic findings of the proband and his family members, the diagnosis and management of congenital LQTS were analyzed. This study was approved by the Medical Ethics Committee of Chengdu Women′s and Children′s Central Hospital [Approval No. Lun Shen 2021 (118)], and informed consent form was obtained from the child′s guardian.

Results

① Both the proband (male, 10 years old) and the mother (31 years old) had a history of recurrent syncope, their electrocardiogram results showed a corrected QT interval (QTc) >500 ms and notched or biphasic T-waves. The proband′s maternal grandfather died of liver cancer at the age of 49, with no documented history of syncope or available electrocardiogram records. Other family members, except the proband′s mother, had no history of syncope, and their electrocardiogram results revealed normal QTc. ② WES revealed a heterozygous missense mutation of KCNH2: c. 94G>A (p.A32T) in the proband and his mother, confirming maternal inheritance. The variant was absent in the proband′s younger brother, father, maternal uncle, and maternal grandmother. ③ Both the proband and his mother were diagnosed of LQT2 subtype. The proband was treated with oral propranolol hydrochloride, while his mother received combined oral therapy with propranolol hydrochloride and mexiletine hydrochloride, both need taking lifelong medicine. The proband and his mother had been treated and followed up for over 3 years, and no syncope and cardiac events had occurred. The recheck of electrocardiogram showed that the proband′s QTc was shortened and his mother′s QTc returned to normal.

Conclusions

Family investigation facilitates early identification of congenital LQTS patient. Electrocardiogram examination with accurate QTc measurement is critical in syncope evaluation to prevent missed diagnoses of LQTS patient. Beta blockers are effective in the treatment of congenital LQT2 subtype patients.

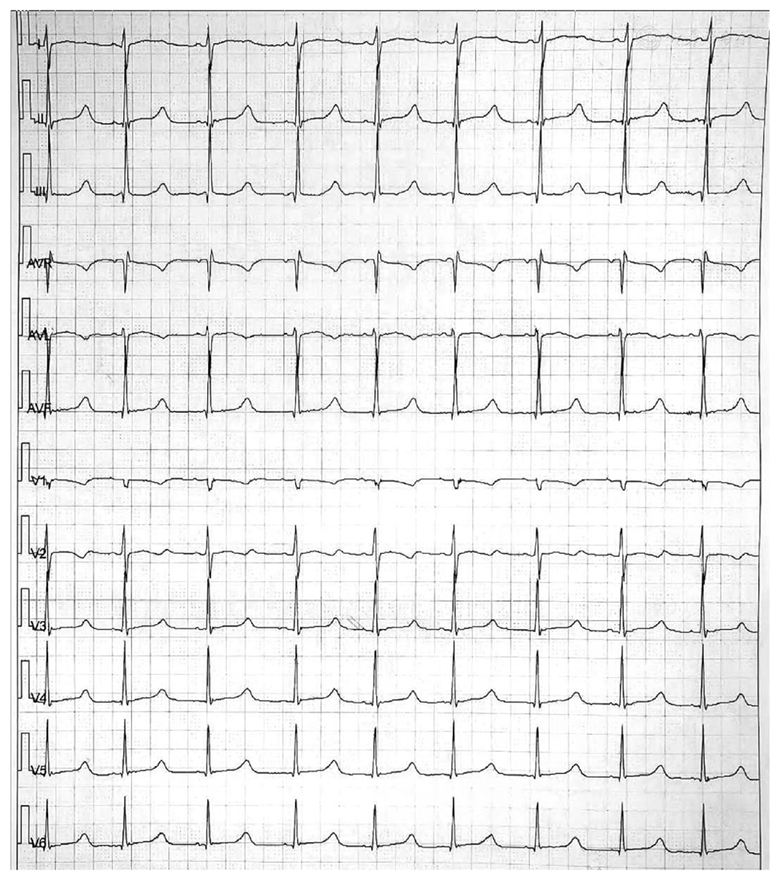

图1 先证者(男性,10岁)2021年7月第1次心电图结果(QTc为521 ms,V4~V6导联T波可见切迹,但心电图报告未提示QT间期延长)注:先证者为先天性长QT综合征2型患儿。QTc为校正QT间期
图2 先证者(男性,10岁)24 h动态心电图结果(QTc最长为535 ms,心率为69次/min)注:先证者为先天性长QT综合征2型患儿。QTc为校正QT间期
图3 先证者母亲(31岁)2021年7月外院心电图结果(QTc为550 ms,V2~V6导联T波可见双峰/切迹改变)注:先证者母亲为先天性长QT综合征2型患者。QTc为校正QT间期
图4 先证者(男性,10岁)家系系谱图注:Ⅰ表示第1代、Ⅱ表示第2代、Ⅲ表示第3代。□和○分别表示正常男性和女性,■和●分别表示患病男性和女性,表示先证者,/表示死亡者。先证者为先天性长QT综合征2型患儿
图5 先证者(Ⅲ1,男性,10岁)家系KCNH2基因Sanger法测序图(红色箭头所示为KCNH2基因c.94G>A变异位点,黑色箭头所示为该位点均未发生变异)注:先证者及母亲均为先天性长QT综合征2型患者

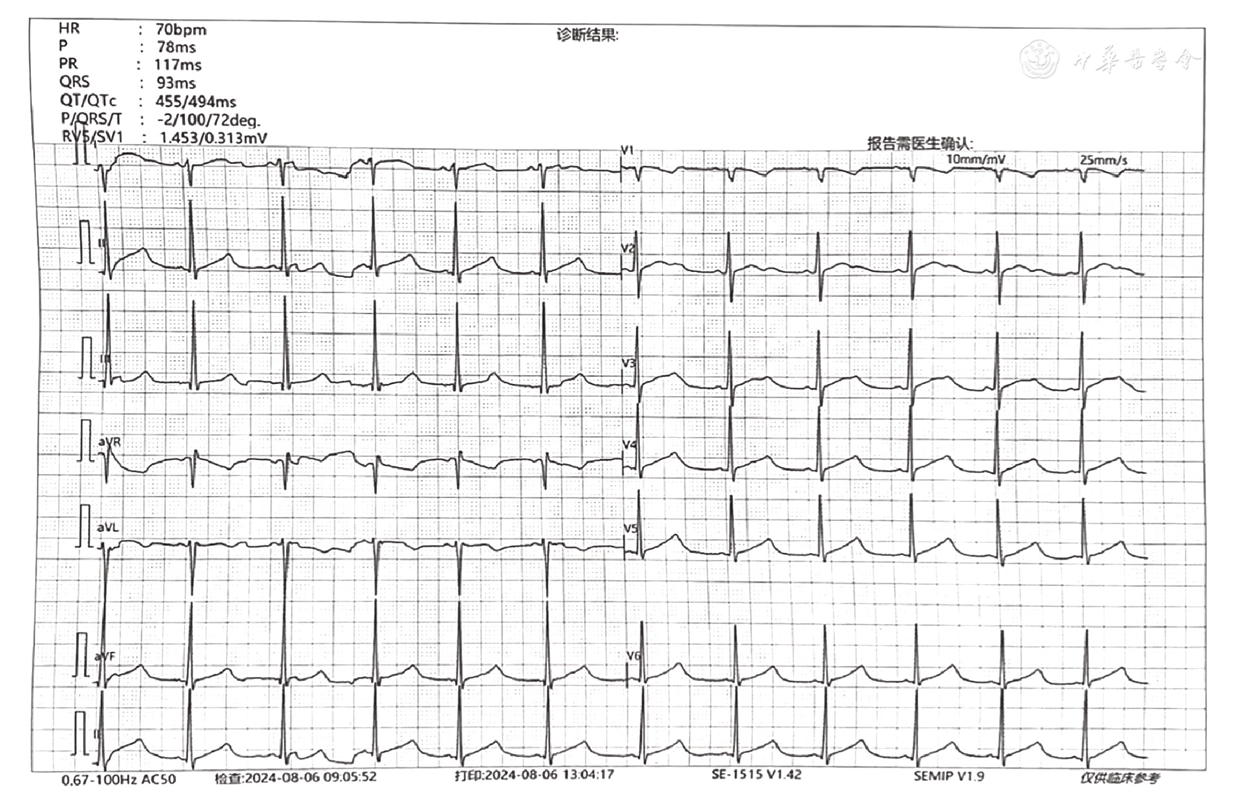

图6 先证者(男性,13岁)确诊并治疗3年复查心电图结果(QTc为494 ms)注:先证者为先天性长QT综合征2型患者。QTc为校正QT间期
图7 先证者母亲(34岁)确诊并治疗3年复查心电图结果(QTc为458 ms)注:先证者及母亲均为先天性长QT综合征2型患者。QTc为校正QT间期
[1]
Krahn AD, Laksman Z, Sy RW, et al. Congenital long QT syndrome[J]. JACC Clin Electrophysiol, 2022, 8(5): 687-706. DOI: 10.1016/j.jacep.2022.02.017.
[2]
李翠兰,刘文玲,高元丰. 先天性与获得性长QT综合征诊断治疗现状[J]. 心血管病学进展2021, 42(5): 385-391. DOI: 10.16806/j.cnki.issn.1004-3934.2021.05.001.
[3]
Priori SG, Wilde AA, Horie M, et al. HRS/EHRA/APHRS expert consensus statement on the diagnosis and management of patients with inherited primary arrhythmia syndromes[J]. Heart Rhythm, 2013, 10(12): 1932-1963. DOI: 10.1016/j.hrthm.2013.05.014.
[4]
戈海延,李小梅,江河,等. 儿童长QT综合征心脏事件风险因素单中心分析[J]. 中华实用儿科临床杂志2021, 36(18): 1417-1420. DOI: 10.3760/cma.j.cn101070-20200320-00470.
[5]
Kapplinger JD, Tester DJ, Salisbury BA, et al. Spectrum and prevalence of mutations from the first 2 500 consecutive unrelated patients referred for the FAMILION® long QT syndrome genetic test[J]. Heart Rhythm, 2009, 6(9): 1297-1303. DOI: 10.1016/j.hrthm.2009.05.021.
[6]
Marschall C, Moscu-Gregor A, Klein HG. Variant panorama in 1 385 index patients and sensitivity of expanded next-generation sequencing panels in arrhythmogenic disorders[J]. Cardiovasc Diagn Ther, 2019, 9(S2): S292-S298. DOI: 10.21037/cdt.2019.06.06.
[7]
Schwartz PJ, Stramba-Badiale M, Crotti L, et al. Prevalence of the congenital long-QT syndrome[J]. Circulation, 2009, 120(18): 1761-1767. DOI: 10.1161/circulationaha.109.863209.
[8]
Wilde AAM, Amin AS, Postema PG. Diagnosis, management and therapeutic strategies for congenital long QT syndrome[J]. Heart, 2022, 108(5): 332-338. DOI: 10.1136/heartjnl-2020-318259.
[9]
Migdalovich D, Moss AJ, Lopes CM, et al. Mutation and gender-specific risk in type 2 long QT syndrome: implications for risk stratification for life-threatening cardiac events in patients with long QT syndrome[J]. Heart Rhythm, 2011, 8(10): 1537-1543. DOI: 10.1016/j.hrthm.2011.03.049.
[10]
Goldenberg I, Moss AJ. Long QT syndrome[J]. J Am Coll Cardiol, 2008, 51(24): 2291-2300. DOI: 10.1016/j.jacc.2008.02.068.
[11]
Viskin S, Rosovski U, Sands AJ, et al. Inaccurate electrocardiographic interpretation of long QT: the majority of physicians cannot recognize a long QT when they see one[J]. Heart Rhythm, 2005, 2(6): 569-574. DOI: 10.1016/j.hrthm.2005.02.011.
[12]
Wilde AAM, Schwartz PJ. Long QT syndrome, a diagnosis that warrants expert opinion and expert centers[J]. J Am Coll Cardiol, 2023, 81(5): 487-489. DOI: 10.1016/j.jacc.2022.11.037.
[13]
Schwartz PJ, Ackerman MJ, George AL Jr, et al. Impact of genetics on the clinical management of channelopathies[J]. J Am Coll Cardiol, 2013, 62(3): 169-180. DOI: 10.1016/j.jacc.2013.04.044.
[14]
Goldenberg I, Bradley J, Moss A, et al. Beta-blocker efficacy in high-risk patients with the congenital long-QT syndrome types 1 and 2: implications for patient management[J]. Cardiovasc Electrophysiol, 2010, 21(8): 893-901. DOI: 10.1111/j.1540-8167.2010.01737.x.
[15]
Burns C, McGaughran J, Davis A, et al. Factors influencing uptake of familial long QT syndrome genetic testing[J]. American J Med Genetics Pt A, 2016, 170(2): 418-425. DOI: 10.1002/ajmg.a.37455.
[16]
Tester DJ, Will ML, Haglund CM, et al. Effect of clinical phenotype on yield of long QT syndrome genetic testing[J]. J Am Coll Cardiol, 2006, 47(4): 764-768. DOI: 10.1016/j.jacc.2005.09.056.
[17]
Zhang C, Kutyifa V, McNitt S, et al. Identification of low-risk adult congenital LQTS patients[J]. Cardiovasc Electrophysiol, 2015, 26(8): 853-858. DOI: 10.1111/jce.12686.
[18]
Van Langen IM. The use of genotype-phenotype correlations in mutation analysis for the long QT syndrome[J]. J Med Genet, 2003, 40(2): 141-145. DOI: 10.1136/jmg.40.2.141.
[19]
Chockalingam P, Crotti L, Girardengo G, et al. Not all beta-blockers are equal in the management of long QT syndrome types 1 and 2[J]. J Am Coll Cardiol, 2012, 60(20): 2092-2099. DOI: 10.1016/j.jacc.2012.07.046.
[20]
李翠兰,刘文玲,张莉,等. 治疗长QT综合征普萘洛尔的效果优于美托洛尔[J]. 中华心血管病杂志2013, 41(1): 83. DOI: 10.3760/cma.j.issn.0253-3758.2013.01.021.
[21]
Bos JM, Crotti L, Rohatgi RK, et al. Mexiletine shortens the QT interval in patients with potassium channel-mediated type 2 long QT syndrome[J]. Circ Arrhythmia Electrophysiol, 2019, 12(5): e007280. DOI: 10.1161/circep.118.007280.
